Floor Scales

VN Series

Economical Painted Steel Floor Scales for Basic Industrial Applications
The VN Series of floor scales is the right choice for your basic dry weighing needs in industrial and commercial applications. Coupled with corresponding ramps, mounting accessories and T31P indicator, the OHAUS VN Series offers a unique combination of value, quality and dependability that your company can rely on.

Request a Quote

Magic Spreadsheet
Features
VN Series Features

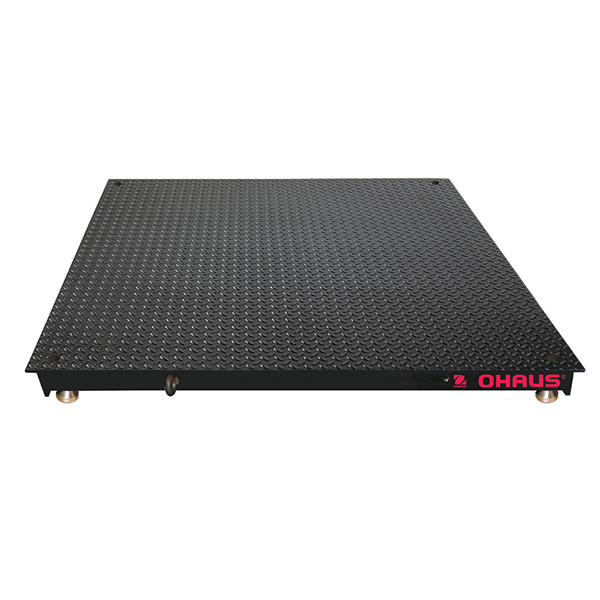

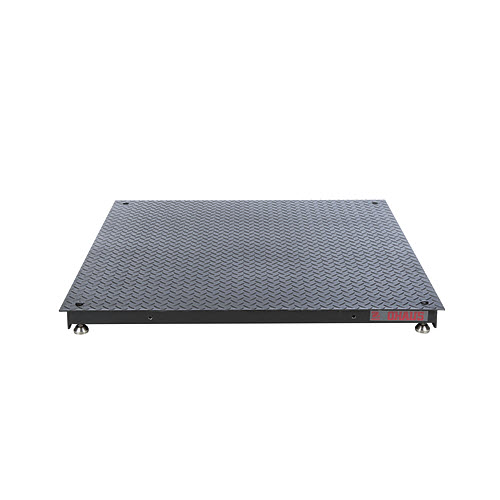

The durable VN is constructed of an epoxy painted steel frame, an ABS T31P indicator, NEMA 4X/IP65 sealed stainless steel junction box and IP67 sealed load cells.
With a rechargeable lead acid battery included with each VN, position the floor scale freely in the workspace without having to be forced to work near an outlet.
Painted steel ramps are available to be added to any VN platform, which provide bottom support ribs that prevent the platform from bending under heavy loads.
Models
VN Series Models
Compare Models
Filter_Models
Maximum Capacity
Show More
Readability
Show More
Readability (Certified)
Show More
Platform Size

Show More
Battery Life
Show More
Communication
Show More
Compare Models
Models #: VN31P5000L
MSRP :


Add to Comparison Remove Comparison
Maximum Capacity
5,000 lb (2,200 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Generate a Quote Request a Quote
Add To Quote List Remove From Quote List
Models #: VN31P5000X
MSRP :


Add to Comparison Remove Comparison
Maximum Capacity
5,000 lb (2,200 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Generate a Quote Request a Quote
Add To Quote List Remove From Quote List
Details
VN Series Product Details
Applications
Weighing, Parts Counting
Display
Backlit liquid crystal display (LCD)
Operation
AC adapter (included) or rechargeable battery (included)
Communication
Easy access communication port with RS232 interface
Construction
ABS plastic indicator, black painted steel treaded platform, NEMA 4X/IP65 stainless steel junction box with side access, IP67 NTEP alloy steel load cells, two carbon steel eye bolts, four self-swiveling ball-in-cup feet, black painted steel ramps and fixed location foot mounting plate kits (accessories sold separately)
Design Features
125% overload protection
